Securely Mount Snow Guard Systems and Other Heavy-Duty Applications to Metal Roof Panels With a Horizontal Seam Greater Than 0.65″ (16.5 mm).

Add to Quote
Category: Applications: , , , Brand: S-5! BrandS-5!

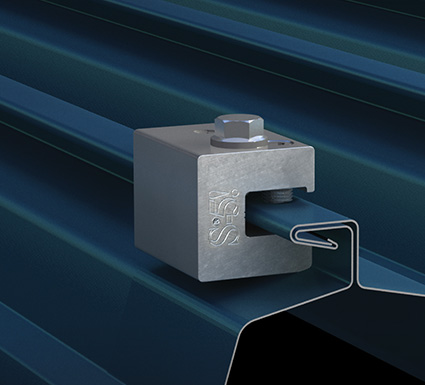

The S-5-H90 is a one-piece clamp that was developed to securely and cost effectively accommodate metal roof panels with a horizontal seam greater than 0.65″. Turning the clamp 90 degrees so that the bolt hole side is facing up, slip the clamp on the seam and tighten the setscrews.

Product Specifications:

  • Designed for standing seam panels with horizontal, single-folded seams
  • Secure and cost-effective solution for horizontal seam dimensions ≥ 0.65” (16.5 mm)
  • Fits all standing seams the S-5-U fits horizontally and fits fully seamed profiles the S-5-H fits vertically – but is more cost-effective than either.
  • Heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews – side installation – (Torx bit tip provided)
  • One M8 bolt included
