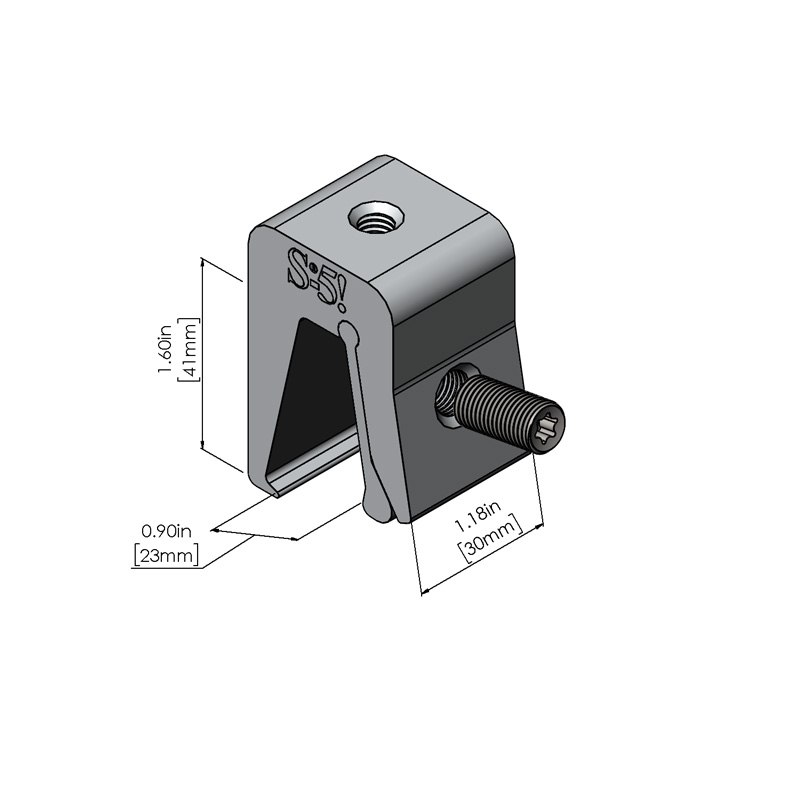

S-5-NH1.5 Mini (No Bolt)

The NH 1.5 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

Add to Quote
Category: Applications: , , Brand: S-5! BrandS-5!

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Product Specifications:

  • For use on 1.5” (38 mm) nail strip profiles
  • Fits 1-1/2″ nail strip profiles – those with a wider horizontal base dimension – (> 0.475” and ≤ 0.800”)
  • Reversible hinge for wide and medium-width profiles
  • Hinge forms to shape of seam, preventing damage at point of attachment
  • Toe on hinge engages female portion of panel for optimal holding strength
  • Hinged insert staked at one end to facilitate installation
  • Angled setscrews for ease of tool insertion
  • Smaller than the standard S-5-NH 1.5
  • For light and medium-duty applications, such as solar and other utilities
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
  • M8-1.25 x 16mm Bolt
  • M8-1.25 x 20mm Bolt
