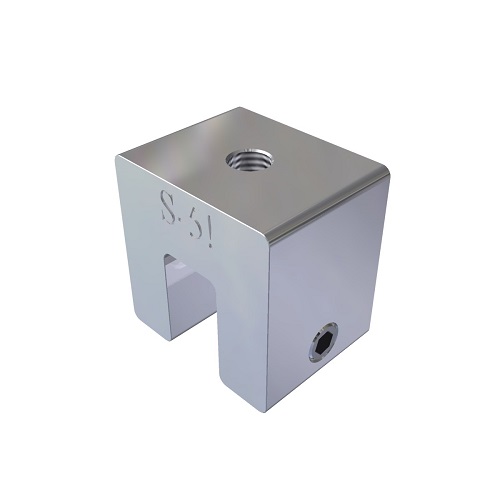

S-5-S Mini (No Bolt)

The S-5-S clamp is designed for most popular snap-lock profiles and single-folded (angle-seam) profiles with horizontal dimensions ≤ 0.5”.

  • No M8 bolt included (sold separately)
Add to Quote
Category: Applications: , , Brand: S-5! BrandS-5!

The S-5-S Mini is a bit shorter than the S-5-S and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!

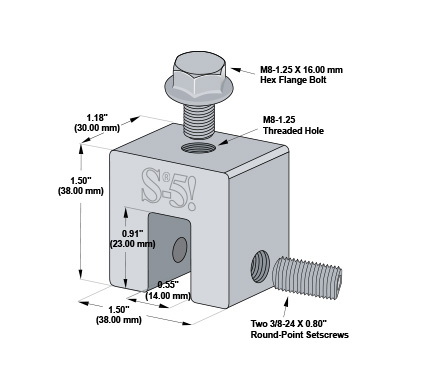

Product Specifications:

  • Use on vertical snap-together profiles
  • Use on single-folded with horizontal projection (horizontal seams) under ≤ 0.54” (13 mm)
  • Utility mounting and other light and medium-duty applications
  • Smaller than the standard S-5-S
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
  • Also available in stainless – call for pricing
