CorruBracket™

Strong Enough for Heavy-Duty, Commercial Applications, Mount Almost Anything to 7/8″ and 3/4″ Rib Pitch U.S. Corrugated Metal Roofing.

Add to Quote
Category: Applications: , Brand: S-5!

CorruBracket is ideal for mounting snow guards and other heavy-duty applications to corrugated roofing. Compatible with the PVKIT® for direct-attach™ solar PV mounting when there is an underlying wood deck. This metal roof bracket can also be used with railed-mounting.

Fastened through the roof panel and into the structure, CorruBracket utilizes two to four fasteners specifically designed to outlive the roof.

Note: CorruBracket must be mounted directly over and into the supporting structure of the roof, (i.e. wood decking, wood or steel purlins or trusses) – NEVER into the metal roofing material alone.

With no messy, field-applied sealants, there’s no chance for leaks. CorruBracket comes with factory-applied, butyl sealant already in the base. The part design conceals the sealant, preventing UV degradation and over-compression of the sealant when fasteners are secured.

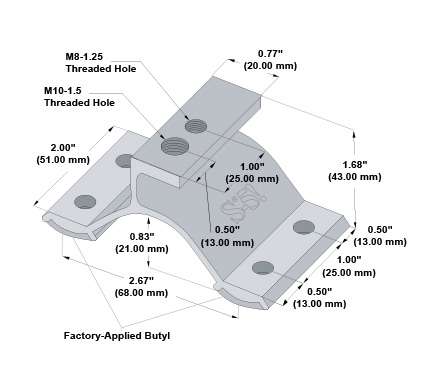

Product Specifications:

  • For 7/8″ and 3/4″ high x 2.67” rib-pitch U.S. corrugated metal roofs
  • Fastens through roof panel and into the structure
  • Reservoir conceals sealant from UV exposure, preventing UV degradation and over-compression of sealant
