VersaBracket-67

Add to Quote
Category: Applications: , Brand: S-5!

VersaBracket-67

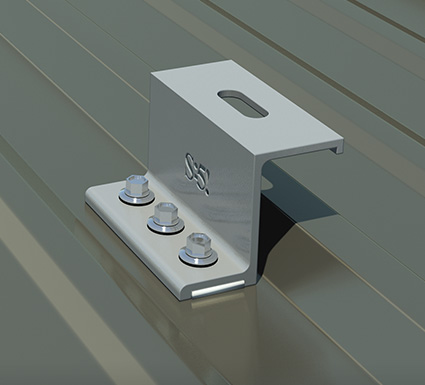

The VersaBracket is a bottom-fixed, metal roof bracket specifically designed for mounting S-5! ColorGard with VersaClip and solar PV to exposed‑fastened profiles. VersaBracket is compatible with the S-5-PVKIT® for rail-less (direct-attach™) or bottom-bolted rail for solar mounting. It can be used for other utility mounting as well.

Product Specifications:

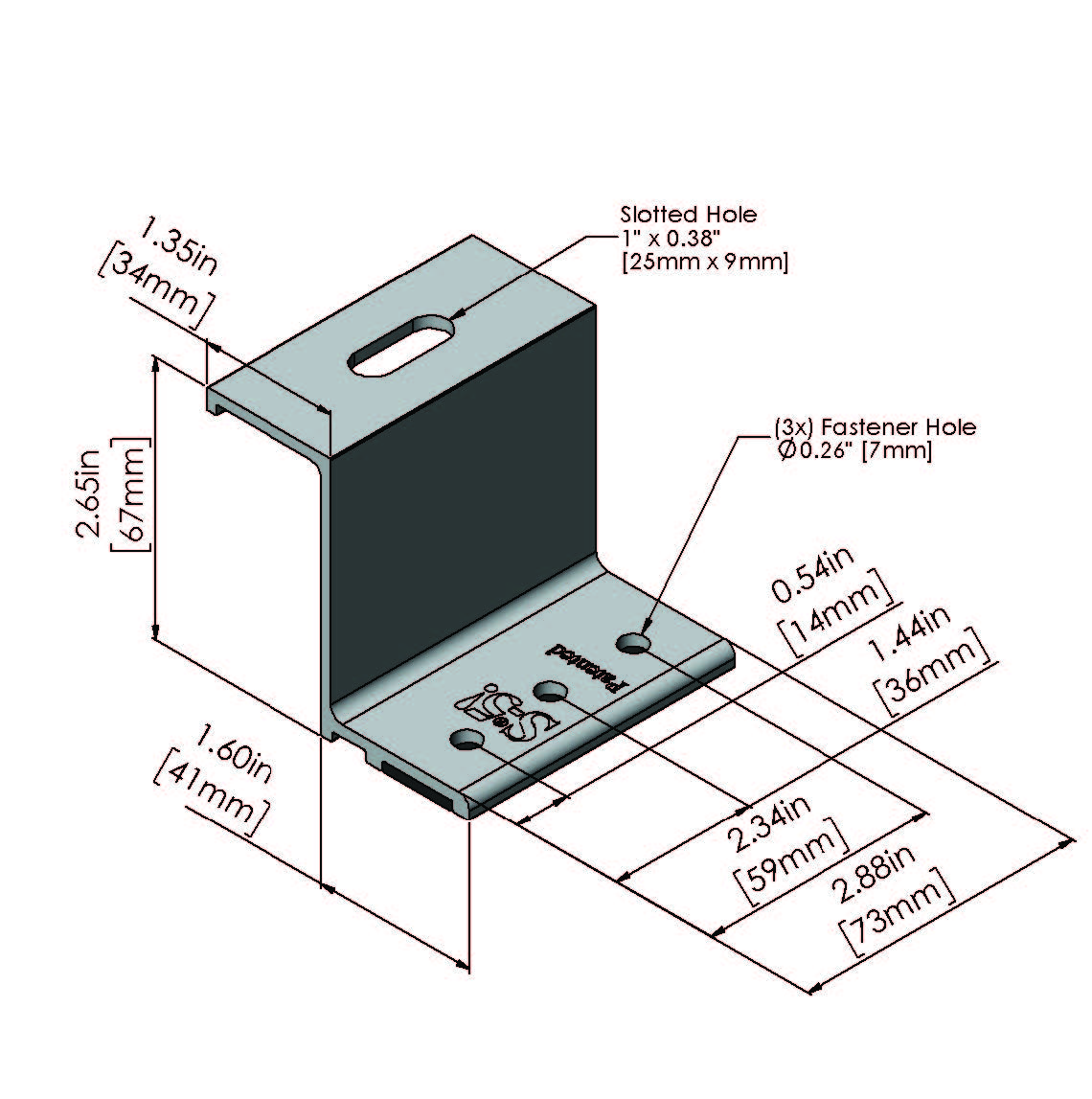

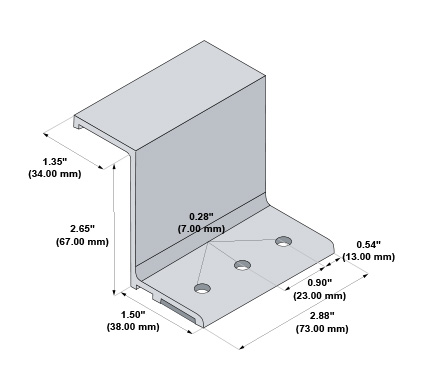

  • VersaBracket 67: 2.65” (67 mm)
  • Horizontal mounting face comes with 1” (25 mm) slot on top for 8 mm bolted attachments
  • Factory-applied, non-curing, 60-yr butyl sealant–just peel release paper and fasten
  • Reservoir conceals sealant from UV exposure, preventing UV degradation and over-compression
  • Design uses a “triple-seal” for watertight assurance
